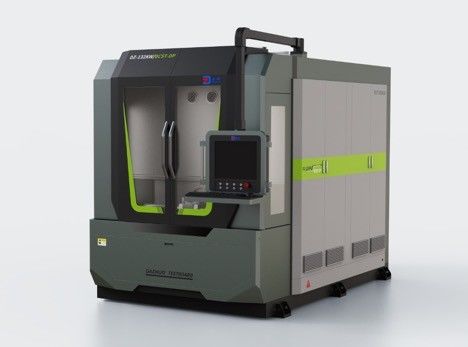

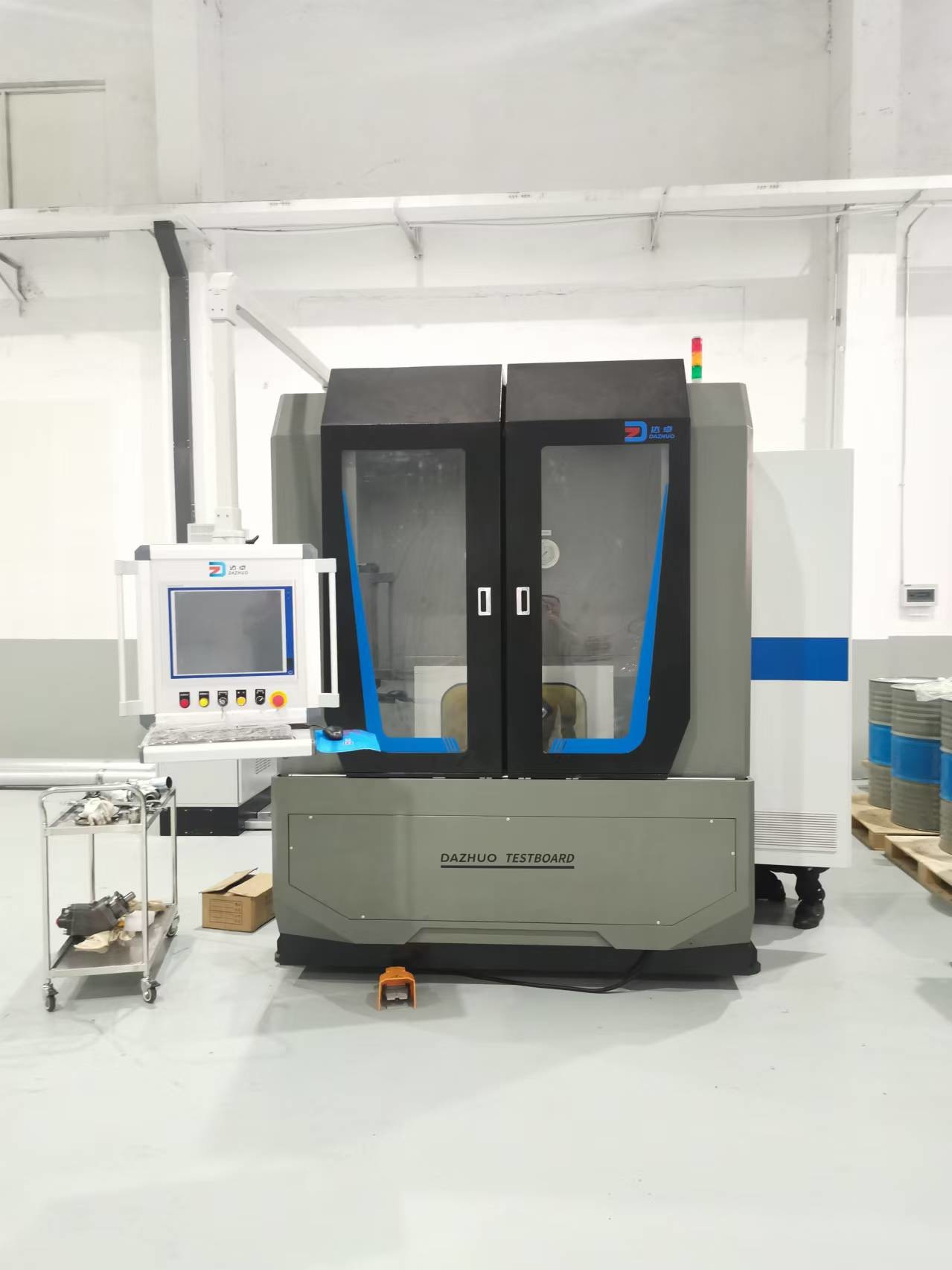

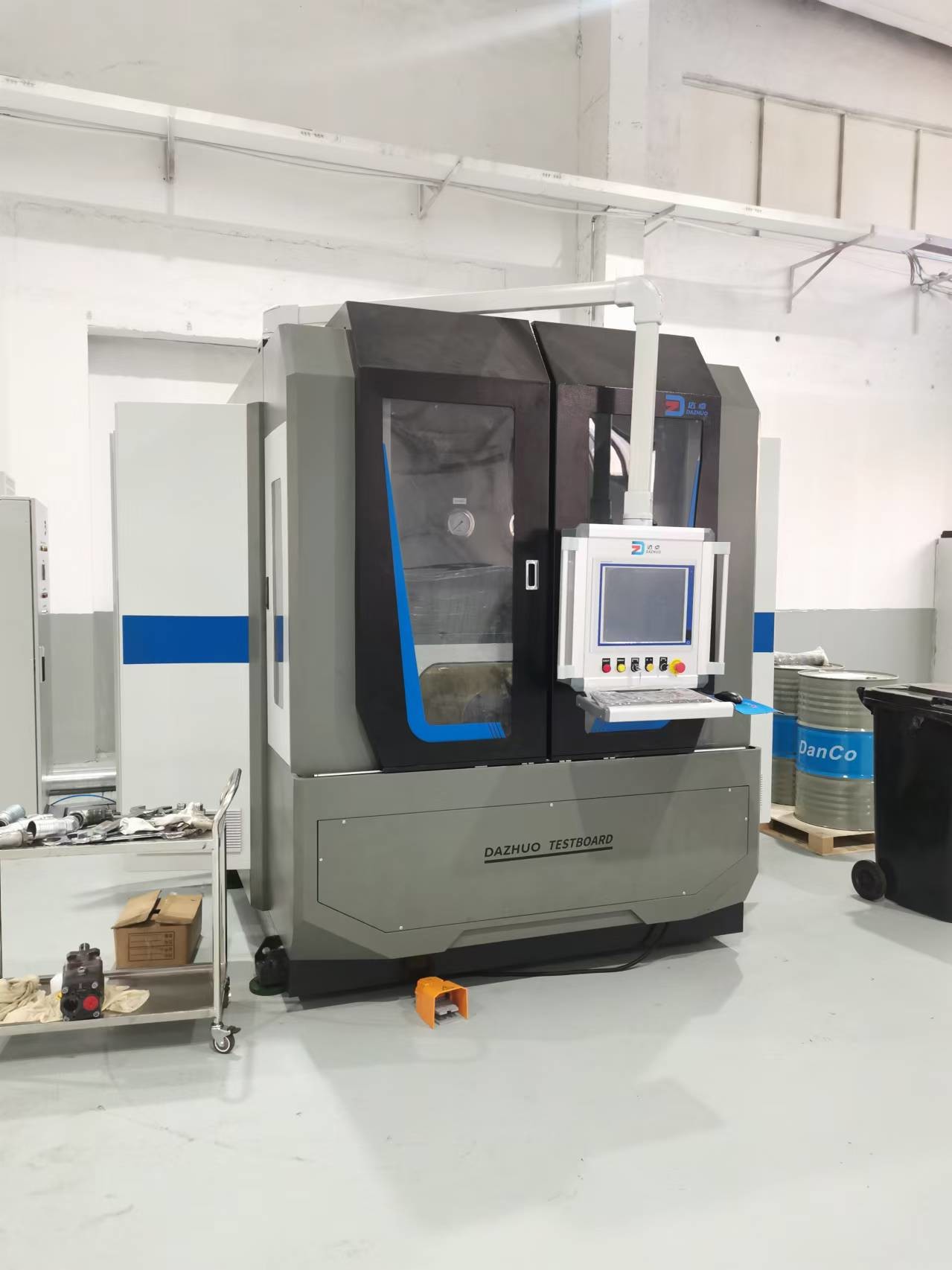

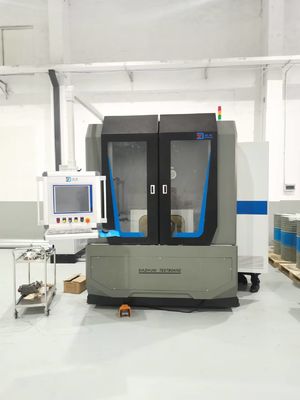

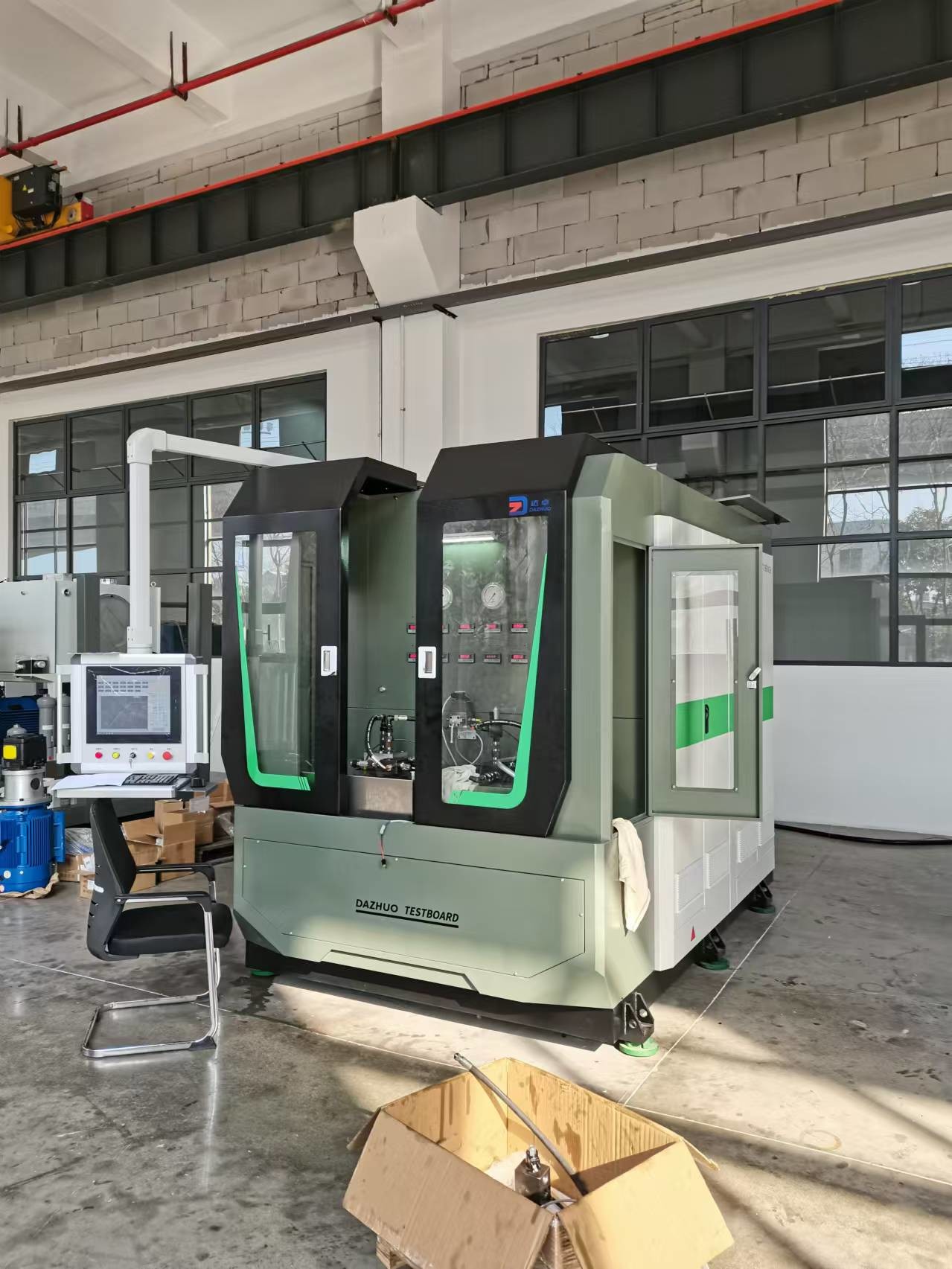

Highland High Accuracy Hydraulic Pump Test Kit Hydraulic Pressure Test Pump 110KW

1 Set
MOQ
Negotiation
Price
Highland High Accuracy Hydraulic Pump Test Kit Hydraulic Pressure Test Pump 110KW
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Pressure: 40 Mpa
Rated Flow Rate: 150 L/min
Flowmeter Specifications (Large): 1～250 L/min
Flowmeter Specifications (Small): 0.02～4 L/min
Pressure Sensor Range: 0-60Mpa (oil Supply, Working Cavity), 0-10Mpa (oil Return)
Pressure Sensor Accuracy: 0.25%
Pressure Gauge Range: 0-40Mpa (oil Supply, Working Cavity) 0-10Mpa (oil Return)
Pressure Gauge Accuracy Class: 0.25
Filter Accuracy: 3 μm
Servo Cylinders: Resolution≤ 1μ
Warranty: 1 Year. 24hr Online Technical Guidance.
Highlight:

Highland Hydraulic Pump Test Kit

,

High Accuracy Hydraulic Pump Test Kit

,

Hydraulic Pressure Test Pump 110KW
Basic Infomation
Place of Origin: China (Mainland)
Brand Name: DZ
Model Number: DZ-001
Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: 30-45 working days
Payment Terms: T/T
Supply Ability: 50 sets per month
Product Description
Highland High Accuracy Hydraulic Pump Pressure Test Kit For Sale,Hydraulic Pressure Test Pump


Application


1 . Functional requirements : it is used for testing hydraulic pumps,high speed motors,low speed motors,hydraulic cylinders and all kinds of valves
2 . Pumps and Motors Model Range: (according to part A’s request)

3 . Test Item:
1). Displacement checking testing : No-load Pressure,determination of displacement.
2). Volumetric Efficiency/Total Efficiency Testing: Under the rated conditions,test volumetric efficiency and total efficiency.
3). Overload Testing: Max.displacement,Nominal Speed,125% of the rated pressure, or max. pressure operation more than 1 minute
4). External Leakage: in the above testing, Check the leakage of sealing parts.





Our hydraulic test bench are customized machine. Please tell me your requirements. Our engineer will make the best solution for you.



National standards
GB/T8104,GB/T8105,GB/T8106,GB/T7936,GB/T 15622
Industry standards
JB/T8728,JB/T7039,JB/T7042,JB/T7044
Total power
75KW,90KW,110KW,132KW,160KW,315kw,350kw
Range of test pressure
0~42MPa
Range of flow rate
0~500L/min
Range of rotational speed
0~3000r/min
Composition
Dynamic system, hydraulic control system, hydraulic oil filter temperature control system and electric control system, data acquisition test system
Applicable area
Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields.





Technical Date

Flow Rate Power Pressure Motive Force
500L/min 150KW 35Mpa Combined electric motor hydraulic drive, stepless speed redulation
Flow Rate Power Pressure Motive Force
380L/min 75-160KW 35Mpa Combined electric motor hydraulic drive, stepless speed regulation
Flow Rate Power Pressure Motive Force
380L/min 120KW 35Mpa Combined diesel engine hydraulic drive
Flow Rate Power Pressure Motive Force
300L/min 75KW 35Mpa Motor
