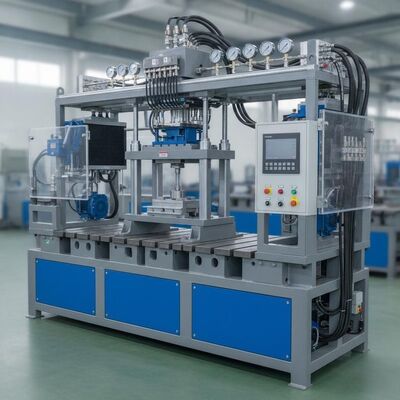

Hydraulic Cylinder Test Bench with 1000 Bar Max Pressure, 10 Tons Max Load Capacity, and 5°C to 45°C Operating Temperature

Product Description:

The Hydraulic Cylinder Test Bench is an advanced and robust testing solution designed to meet the rigorous demands of hydraulic cylinder evaluation. Engineered to provide precise and reliable performance, this cylinder type test bench is essential for industries that require thorough validation and endurance testing of hydraulic cylinders. With a maximum pressure capacity of 1000 Bar, the test bench ensures that cylinders can be tested under extreme conditions, simulating real-life operational stresses to guarantee optimal durability and safety.

Weighing 1200 Kg, the Hydraulic Cylinder Test Bench is built with a sturdy and stable framework that minimizes vibrations and enhances the accuracy of test results. The substantial weight contributes to the overall durability and longevity of the equipment, making it suitable for continuous use in demanding industrial environments. Despite its robust construction, the bench is designed for ease of operation and maintenance, enabling technicians to perform comprehensive tests efficiently.

Operating within a temperature range of 5°C to 45°C, this hydraulic cylinder test bench is versatile and adaptable to various environmental conditions. This broad operating temperature range ensures consistent performance and reliable data collection whether the test is conducted in climate-controlled facilities or less regulated industrial settings. Maintaining optimal temperature conditions is crucial for hydraulic oil performance, and the test bench is optimized to handle these requirements seamlessly.

The test medium used in this cylinder type test bench is hydraulic oil, which accurately replicates the working fluid in most hydraulic systems. Using hydraulic oil as the test medium allows for realistic simulation of hydraulic cylinder operations, including pressure, flow, and sealing integrity. This feature is vital for assessing the endurance and functional reliability of hydraulic cylinders over extended periods, ensuring that they meet stringent quality and performance standards.

One of the standout features of this hydraulic cylinder test bench is its ability to accommodate cylinder stroke ranges from 50 mm to 1000 mm. This wide stroke range makes the bench highly adaptable to various cylinder sizes and types, providing flexibility for manufacturers and testing facilities that handle diverse hydraulic cylinder products. The adjustable stroke capability allows for precise control over the testing parameters, enabling detailed analysis of cylinder performance across different operational scenarios.

The hydraulic cylinder endurance test conducted on this bench is critical for verifying the long-term reliability and strength of hydraulic cylinders. By subjecting cylinders to repeated cycles of pressurization and movement, the test bench helps identify potential failure points, wear patterns, and sealing issues before the cylinders are deployed in the field. This proactive approach to testing enhances product quality, reduces warranty claims, and increases customer confidence in hydraulic equipment.

In summary, the Hydraulic Cylinder Test Bench is a comprehensive and reliable solution for cylinder type testing, designed to handle high pressures up to 1000 Bar, with a substantial weight of 1200 Kg ensuring stability and precision. Its operating temperature range from 5°C to 45°C and use of hydraulic oil as the test medium guarantee realistic and consistent testing conditions. The ability to test cylinder strokes ranging from 50 mm to 1000 mm adds versatility, making it suitable for a wide array of hydraulic cylinders. This hydraulic cylinder test bench is indispensable for conducting rigorous hydraulic cylinder endurance tests, ultimately ensuring the highest standards of hydraulic cylinder performance and durability.

Features:

• Product Name: Hydraulic Cylinder Test Bench
• High precision pressure measurement with an accuracy of ±0.5%
• Suitable for cylinders with diameter range from 20 mm to 200 mm
• Designed for testing hydraulic cylinders for performance and leakage
• Maximum load capacity of 10 tons for robust testing
• Ideal hydraulic cylinder test machine for quality assurance
• Functions effectively as a hydraulic cylinder repair bench
• Supports comprehensive cylinder end-of-line test procedures

Technical Parameters:

Applications:

The DZ Hydraulic Cylinder Test Bench, model DZ-03, is an essential piece of equipment designed for comprehensive testing of hydraulic cylinders. This advanced hydraulic oil cylinder test bench is specifically engineered to evaluate the performance and detect any leakage in hydraulic cylinders, ensuring reliability and safety in various industrial applications. With a maximum test pressure of 35 MPa, the DZ-03 can simulate real-world working conditions, making it ideal for both manufacturers and maintenance facilities.

This hydraulic cylinder test bench is widely used in occasions where precision and accuracy are critical. It is perfect for quality control departments in hydraulic cylinder manufacturing plants, where each unit must undergo rigorous hydraulic cylinder leakage tests before shipment. Additionally, repair shops and service centers utilize this test bench to diagnose faults and verify repairs, reducing downtime and preventing unexpected failures in hydraulic systems.

The DZ-03 Hydraulic Cylinder Test Bench is also suitable for research and development laboratories focused on hydraulic system innovations. Its robust design, weighing 1200 kg, ensures stability and durability during testing procedures. The bench features modern data output options, including USB and Ethernet connectivity, facilitating efficient data logging and analysis for performance evaluation and quality assurance.

With a supply ability of 50 sets per month and a minimum order quantity of just 1 set, the DZ-03 is accessible to various businesses regardless of scale. The product is packaged securely in a wooden case to prevent damage during transportation and is delivered within 30-45 working days. Pricing is negotiable, and payment terms are flexible, primarily via T/T, to accommodate client needs.

In summary, the DZ Hydraulic Cylinder Test Bench (DZ-03) is an indispensable tool for hydraulic cylinder leakage test and performance verification. Its combination of high test pressure capacity, reliable data output options, and sturdy construction makes it suitable for diverse application scenarios, from manufacturing lines to repair workshops and R&D centers. Choosing this hydraulic oil cylinder test bench ensures enhanced product quality, operational safety, and maintenance efficiency in hydraulic systems.

Customization:

Our DZ Hydraulic Cylinder Test Bench (Model Number: DZ-03) offers comprehensive product customization services tailored to meet your specific testing needs. Designed as a versatile cylinder type test bench, it is ideal for testing hydraulic cylinders for performance and leakage, ensuring reliable and efficient hydraulic cylinder repair bench operations.

With a robust power supply requirement of 380V, 50Hz, 3-phase and an operating temperature range of 5°C to 45°C, this hydraulic oil cylinder test bench is built for optimal performance in various working environments. We prioritize quality and durability, packaging each unit securely in a wooden case to guarantee safe delivery.

We accommodate minimum order quantities starting from 1 set, with supply abilities up to 50 sets per month. Delivery time is typically 30-45 working days, and payment terms are flexible with T/T accepted. Pricing is negotiable to better suit your budget and project requirements.

We invite you to customize your Hydraulic Cylinder Test Bench with us, ensuring that each unit precisely fits your operational demands and contributes to efficient hydraulic system maintenance and repair.
