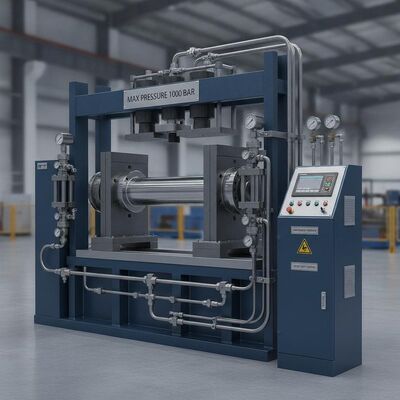

1000 Bar 10 Tons Hydraulic Cylinder Test Bench with 35 MPa Maximum Test Pressure for Heavy Duty Testing

Product Description:

The Hydraulic Cylinder Test Bench is a state-of-the-art testing solution designed specifically for the precise and reliable evaluation of hydraulic cylinders. Engineered to meet the rigorous demands of industrial applications, this test bench offers exceptional performance and accuracy, making it an indispensable tool for manufacturers and maintenance facilities engaged in cylinder end-of-line test procedures. With its robust construction and advanced features, the hydraulic oil cylinder test bench ensures that each hydraulic cylinder meets the highest standards of quality and safety before being deployed in the field.

One of the standout features of this Hydraulic Cylinder Test Bench is its impressive maximum load capacity of 10 tons. This capability allows it to accommodate a wide range of hydraulic cylinders, from small to large, ensuring versatility and flexibility in testing various cylinder sizes. The test bench is specifically designed to handle cylinders with diameters ranging from 20 mm to 200 mm, covering a broad spectrum of applications and industries. Whether testing compact cylinders used in automation or larger cylinders employed in heavy machinery, this test bench delivers consistent and reliable results.

Accuracy is paramount in any testing equipment, and this hydraulic cylinder test bench excels with a pressure measurement accuracy of ±0.5%. This high level of precision guarantees that pressure readings during testing are reliable and repeatable, enabling users to detect even minor deviations or defects in hydraulic cylinders. Such accuracy is vital for ensuring the safety, performance, and longevity of hydraulic systems, particularly in critical applications where failure is not an option.

The operating temperature range of the Hydraulic Cylinder Test Bench spans from 5°C to 45°C, allowing it to perform effectively in various environmental conditions. This range ensures stable operation and accurate testing outcomes, whether the equipment is used in climate-controlled factories or less regulated workshop environments. The test bench's adaptability to different temperatures further enhances its utility and reliability across diverse settings.

Powering this advanced hydraulic oil cylinder test bench is a standard 380V, 50Hz, 3-phase power supply. This configuration aligns with industrial power standards, ensuring efficient and stable energy consumption during operation. The use of a 3-phase power supply also contributes to the durability and longevity of the test bench's components, minimizing downtime and maintenance requirements.

Designed with user convenience and safety in mind, the Hydraulic Cylinder Test Bench features an intuitive control system that simplifies test procedures. Operators can easily set parameters, monitor real-time data, and conduct thorough cylinder end-of-line test processes with minimal training. The test bench is equipped with safety mechanisms to protect both the operator and the equipment, preventing accidents during high-pressure testing scenarios.

In summary, the Hydraulic Cylinder Test Bench is a comprehensive and reliable solution for hydraulic oil cylinder testing needs. Its high load capacity, broad cylinder diameter range, exceptional pressure measurement accuracy, and suitable operating temperature range make it an ideal choice for ensuring hydraulic cylinders meet stringent quality standards. Powered by a standard industrial 3-phase power supply, this test bench combines efficiency, precision, and safety, making it a vital asset for any facility involved in the manufacturing, inspection, or maintenance of hydraulic cylinders. Whether used for routine quality control or detailed diagnostic assessments, this hydraulic cylinder test bench delivers superior performance and dependable results every time.

Features:

• Product Name: Hydraulic Cylinder Test Bench
• Maximum Test Pressure: 35 MPa
• Weight: 1200 Kg
• Test Medium: Hydraulic Oil
• Cylinder Diameter Range: 20 mm to 200 mm
• Cylinder Stroke Range: 50 mm to 1000 mm
• Suitable for use as a hydraulic oil cylinder test bench
• Designed as a Cylinder type test bench for various hydraulic cylinders
• Ideal hydraulic cylinder repair bench for maintenance and testing

Technical Parameters:

Applications:

The DZ Hydraulic Cylinder Test Bench, model DZ-03, is an advanced and reliable solution designed specifically for precise and efficient cylinder end-of-line test applications. This test bench is ideal for manufacturing plants and quality control departments that require rigorous testing of hydraulic cylinders to ensure their performance and durability before they reach the market. With a maximum test pressure of 35 MPa and a max pressure capacity of 1000 Bar, the DZ-03 can simulate real-world operating conditions, making it perfect for cylinder end-of-line test procedures.

Its maximum load capacity of 10 tons and a versatile test speed range of 0-1000 mm/min enable comprehensive hydraulic cylinder endurance test scenarios, assessing the cylinders’ strength, leakage, and overall functionality under sustained and variable loads. The ability to conduct endurance and functional testing helps manufacturers guarantee the reliability and safety of their hydraulic cylinders in demanding industrial environments.

Equipped with advanced data output options including USB and Ethernet for data logging, the DZ Hydraulic Cylinder Test Bench allows seamless integration with digital monitoring systems. This feature facilitates detailed recording and analysis of test results, ensuring quality assurance and traceability throughout the cylinder end-of-line test process.

Manufactured under the reputable DZ brand, the DZ-03 is supplied with a minimum order quantity of just 1 set, making it accessible for both small-scale and large-scale production needs. Each unit is carefully packaged in a wooden case to ensure safe delivery and is available for shipment within 30-45 working days. With a monthly supply ability of 50 sets and flexible payment terms via T/T, the DZ Hydraulic Cylinder Test Bench offers a perfect balance of quality, efficiency, and convenience.

Whether used for routine quality checks or intensive hydraulic cylinder endurance test scenarios, the DZ-03 model stands out as a trustworthy and efficient tool that enhances the reliability of hydraulic cylinders across various industrial sectors.

Customization:

The DZ Hydraulic Cylinder Test Bench, model DZ-03, is a high-performance hydraulic cylinder test machine designed for precise cylinder test and hydraulic cylinder endurance test applications. With a maximum load capacity of 10 tons and a test speed range of 0-1000 mm/min, it effectively tests hydraulic cylinders for performance and leakage. The cylinder stroke range spans from 50 mm to 1000 mm, accommodating various cylinder sizes.

Equipped with advanced data output options including USB and Ethernet for seamless data logging, this test bench ensures accurate monitoring and analysis. The product is securely packaged in a wooden case to guarantee safe delivery, with a lead time of 30-45 working days. Payment terms are via T/T, and the supply ability reaches up to 50 sets per month.

Minimum order quantity is 1 set, with pricing available upon negotiation. The DZ-03 is an ideal solution for industries requiring reliable and efficient hydraulic cylinder endurance testing and cylinder test processes.
