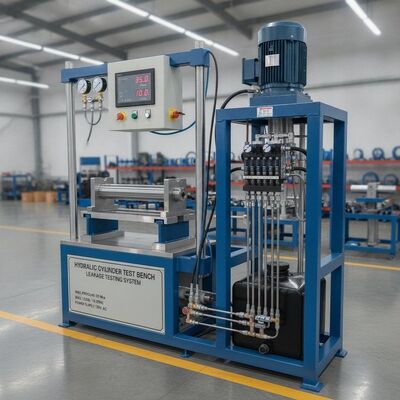

35 MPa 10 Tons Hydraulic Cylinder Test Bench with 50Hz Power Supply for Leakage Testing

Product Description:

The Hydraulic Cylinder Test Bench is a specialized piece of equipment designed to rigorously evaluate the performance and integrity of hydraulic cylinders. Engineered to meet the demanding requirements of modern hydraulic systems, this test bench provides precise and reliable testing capabilities, ensuring that hydraulic cylinders meet the highest standards of quality and durability before deployment in the field.

Operating within a temperature range of 5°C to 45°C, the Hydraulic Cylinder Test Bench is well-suited for use in a variety of environmental conditions, making it a versatile tool for manufacturers and maintenance teams alike. This temperature range ensures optimal performance of the test medium and accurate simulation of real-world operating conditions, which is critical for effective and meaningful testing outcomes.

The test medium employed in this hydraulic cylinder test bench is hydraulic oil, the same fluid used in actual hydraulic systems. Utilizing hydraulic oil as the test medium allows for realistic assessment of cylinder performance, including the detection of potential leaks and verification of pressure-holding capabilities. This feature is essential for identifying manufacturing defects or wear-related issues that could compromise the functionality of hydraulic cylinders in operational settings.

This test bench is capable of accommodating hydraulic cylinders with diameters ranging from 20 mm to 200 mm, covering a broad spectrum of cylinder sizes commonly used across various industries such as construction, agriculture, manufacturing, and automotive sectors. This wide cylinder diameter range ensures that the test bench can be used for multiple applications, providing flexibility and efficiency in testing processes.

With a robust build and a total weight of 1200 kg, the Hydraulic Cylinder Test Bench offers stability and durability during testing procedures. The substantial weight contributes to the overall structural integrity of the equipment, minimizing vibrations and movements that could otherwise affect test accuracy. This solid construction ensures that the hydraulic cylinder endurance test can be conducted under stringent conditions, simulating long-term operational stresses to evaluate the cylinder’s reliability over time.

The primary purpose of this Hydraulic Cylinder Test Bench is to conduct comprehensive testing of hydraulic cylinders for both performance and leakage. By simulating real working conditions, the test bench enables users to assess the cylinder’s ability to withstand pressure, maintain hydraulic fluid containment, and operate smoothly without failure. These tests are critical for ensuring safety, efficiency, and longevity of hydraulic systems that rely heavily on these cylinders.

Moreover, the hydraulic cylinder endurance test capabilities of this bench allow for extended testing periods to simulate the long-term usage of cylinders. This endurance testing is vital in identifying potential fatigue and wear issues before the cylinders are put into service, thereby reducing the risk of unexpected breakdowns and costly repairs. Manufacturers can use the data obtained from these tests to refine their products and enhance their reliability.

In summary, the Hydraulic Cylinder Test Bench is an indispensable tool for anyone involved in the production, maintenance, or quality assurance of hydraulic cylinders. Its ability to test a wide range of cylinder diameters with hydraulic oil as the test medium, within a controlled temperature range of 5°C to 45°C, combined with its sturdy construction weighing 1200 kg, makes it a highly effective solution for ensuring hydraulic cylinders meet stringent performance and leakage standards. Whether for routine quality control or advanced hydraulic cylinder endurance test procedures, this test bench delivers precise, reliable, and repeatable results, contributing significantly to the safety and efficiency of hydraulic systems worldwide.

Features:

• Product Name: Hydraulic Cylinder Test Bench
• Weight: 1200 Kg
• Pressure Measurement Accuracy: ±0.5%
• Purpose: Testing Hydraulic Cylinders for Performance and Leakage
• Operating Temperature Range: 5°C to 45°C
• Designed for hydraulic cylinder endurance test to ensure durability
• Functions as a hydraulic oil cylinder test bench for comprehensive analysis
• Capable of conducting hydraulic cylinder leakage test to detect leaks effectively

Technical Parameters:

Applications:

The DZ Hydraulic Cylinder Test Bench, model DZ-03, is a highly reliable and versatile solution designed specifically for cylinder end-of-line test applications. Manufactured by the reputable DZ brand, this test bench ensures precision and efficiency in testing hydraulic cylinders, making it an essential tool in quality control and manufacturing environments. With a cylinder stroke range of 50 mm to 1000 mm, it accommodates a wide variety of hydraulic oil cylinders, catering to diverse industrial needs.

This hydraulic oil cylinder test bench is ideal for use in factories, assembly lines, and maintenance workshops where accurate and repeatable cylinder end-of-line test processes are critical. Its pressure measurement accuracy of ±0.5% guarantees reliable results, ensuring that every hydraulic cylinder meets stringent performance standards before leaving the production line. The system’s operating temperature range of 5°C to 45°C allows it to function effectively in most indoor industrial settings.

Equipped with advanced data output options including USB and Ethernet connectivity, the DZ-03 facilitates seamless data logging and integration with monitoring systems. This feature is particularly valuable for quality assurance teams requiring detailed test records and traceability. The test bench operates on a stable power supply of 380V, 50Hz, 3-phase, making it compatible with common industrial power infrastructures.

Designed for ease of use and durability, the DZ Hydraulic Cylinder Test Bench comes securely packaged in a wooden case to ensure safe delivery. With a supply ability of 50 sets per month and a delivery time of 30-45 working days, customers can rely on timely procurement for their production schedules. The minimum order quantity is just 1 set, and pricing is negotiable, providing flexibility for businesses of different scales.

In summary, the DZ-03 hydraulic oil cylinder test bench is perfectly suited for rigorous cylinder end-of-line test scenarios, offering precision, reliability, and efficient data management. Whether used in manufacturing, quality control, or maintenance, this test bench supports optimal hydraulic cylinder performance verification and compliance with industry standards.

Customization:

Our DZ brand Hydraulic Cylinder Test Bench, model DZ-03, offers comprehensive product customization services tailored to meet your specific testing requirements. With a minimum order quantity of 1 set and a monthly supply ability of 50 sets, we ensure flexibility and reliability for your hydraulic cylinder leakage test needs.

The test bench supports a cylinder diameter range of 20 mm to 200 mm and a maximum test pressure of 35 MPa, providing precise and efficient hydraulic cylinder leakage test capabilities. The test speed ranges from 0 to 1000 mm/min, allowing for versatile testing scenarios.

Equipped with advanced data output options including USB and Ethernet for data logging, the system guarantees accurate monitoring and recording with a pressure measurement accuracy of ±0.5%. This ensures that every hydraulic cylinder leakage test is conducted with the highest standards of precision.

Packaging is handled carefully with sturdy wooden cases to protect the equipment during delivery, which takes approximately 30-45 working days. Payment terms are flexible with T/T available, and pricing is negotiable to best suit your budget.

Choose our DZ-03 Hydraulic Cylinder Test Bench for reliable, customizable solutions designed specifically for hydraulic cylinder leakage test applications. Contact us today to discuss your requirements and experience superior testing performance.
