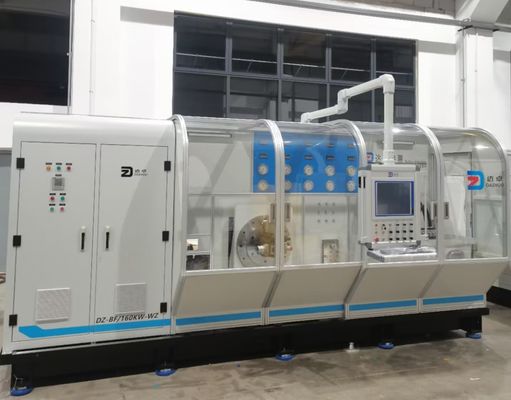

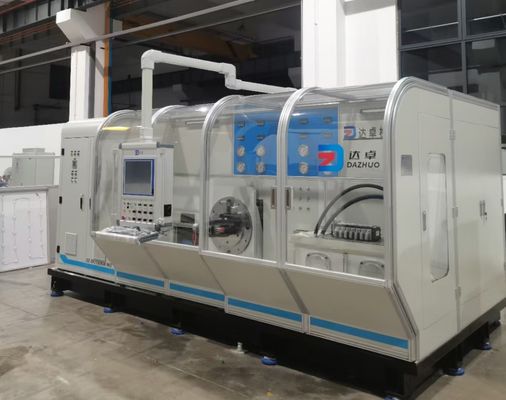

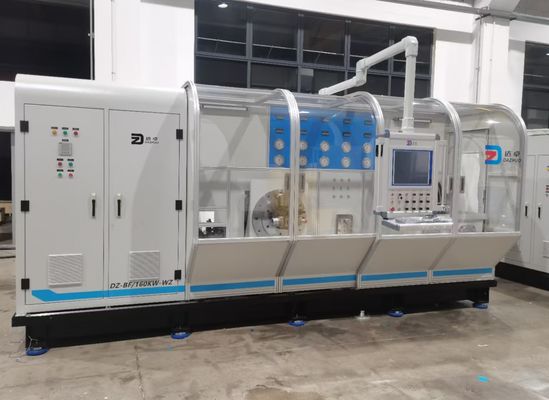

YT-BF/160KW-WZ Hydraulic Pump & Valve Test Bench: High-Precision Performance Testing For Industrial Applications

YT-BF/160KW-WZ Hydraulic Pump & Valve Test Bench: High-Precision Performance Testing for Industrial Applications

Description

A cutting-edge testing solution engineered for R&D, manufacturing, maintenance, and remanufacturing enterprises, this bench integrates versatility and precision. It supports testing of open/closed pumps (using motors for closed-pump testing) and hydraulic valves, ensuring compliance with industry standards. The fully enclosed design enhances safety and aesthetics, while the graphical human-machine interface simplifies operation with real-time monitoring and embedded hydraulic circuit diagrams.

Key Technical Parameters

1. Fuel Tank Volume: 1000L

2. Main Drive System:

- 160KW servo motor

- Standard speed: 1500rpm

- Maximum speed: ≥4500rpm

3. Pump Loading System:

- Two bridge-loading circuits

- Maximum pressure: 43MPa

- Proportional valve loading with cooling functionality

4. Valve Loading System:

- Shared pump-loading circuit

- Proportional valve-controlled pressure adjustment (43MPa)

5. Sensors & Safety:

- High-pressure flow sensors for precision

- High-pressure filters at working ports

Competitive Strengths

1. Advanced Design & Reliability:

- Non-welded pipelines and anti-rust-treated hydraulic tanks ensure system cleanliness and longevity.

- Self-diagnostic capabilities enhance operational stability and safety.

2. Precision & Automation:

- Automated proportional valve loading and real-time data collection enable high-accuracy testing.

- Auto-generated reports and test curves streamline post-analysis.

3. User-Centric Features:

- Intuitive interface with graphical operation panels reduces learning curves.

- Modular design for easy installation and transport.

This system sets a benchmark for performance testing, combining industrial-grade durability with smart functionality to meet diverse enterprise needs.
