Automated Hydraulic System Testing: Save Time With YT-BF/160KW-WZ’S AI-Driven Diagnostics & Reporting

Automated Hydraulic System Testing: Save Time With YT-BF/160KW-WZ’S AI-Driven Diagnostics & Reporting

Description

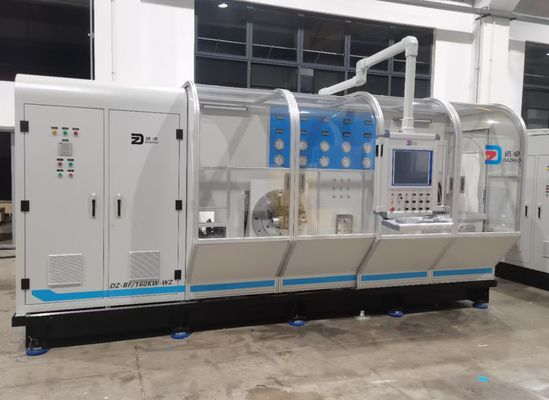

The YT-BF/160KW-WZ Hydraulic Pump & Valve Test Bench is a state-of-the-art testing solution designed for R&D, manufacturing, and remanufacturing enterprises requiring precision, durability, and compliance with industry standards. Engineered to test open/closed hydraulic pumps (including motor-driven closed-pump configurations) and hydraulic valves, this system combines advanced automation with user-centric design for seamless integration into industrial workflows.

Key features include:

- Fully enclosed structure for enhanced safety and reduced noise pollution.

- Proportional valve-controlled loading paired with high-pressure flow sensors (43MPa max) for unparalleled accuracy.

- Real-time monitoring via an intuitive graphical interface with embedded hydraulic circuit diagrams.

- Modular design for easy installation and transportation, ideal for dynamic industrial environments.

Technical Parameters

1. Power & Drive System

- 160KW servo motor with variable-speed control (standard: 1,500rpm; max: ≥4,500rpm).

- 1,000L anti-corrosion hydraulic tank for extended system longevity.

2. Loading Systems

- Pump Testing: Dual bridge-loading circuits with proportional valve loading and integrated cooling.

- Valve Testing: Shared pump-loading circuit, adjustable up to 43MPa.

3. Sensors & Safety

- High-pressure flow sensors and ISO-certified filters ensure system cleanliness and data reliability.

- Self-diagnostic protocols for real-time fault detection and operational stability.

Competitive Strengths

1. Precision Engineering

- Non-welded pipelines and anti-rust-treated components minimize contamination risks, aligning with ISO cleanliness standards .

- Automated test report generation and curve-printing capabilities streamline post-analysis workflows.

2. Industrial-Grade Durability

- Robust enclosed structure designed for heavy-duty applications, validated by field testing in steel plants and hydraulic systems .

3. Smart Automation

- Embedded hydraulic schematics and real-time parameter dashboards reduce operator training time.

- Compatibility with data-logging software for long-term performance tracking.

Why Choose YT-BF/160KW-WZ?

This hydraulic pump test bench sets the benchmark for high-precision performance testing, offering industrial-grade reliability and smart automation for enterprises seeking cost-effective, long-term solutions. From R&D validation to post-repair quality assurance, it ensures compliance with global hydraulic testing standards while optimizing operational efficiency.
