Name: Comprehensive Hydraulic Valve Test Bench 110KW -25 Deg C Minimum Temperature
Brand: Changzhou Dazhuo Testing Equipment Co., Ltd
SKU: DZ-008
Price: 355.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Main Motor Power: 110KW Four-pole Inverter Motor, Speed Range 150~3000rpm

Voltage Regulation Range: 42MPa

Flow Range: VC5K3 1~250L/min, Accuracy 0.3%RS

Return Flow: QT500 2~75 L/min, Accuracy 0.5%RS

Pressure Sensors: 0～60MPa,0.25%FS

Torque Range: ±1000Nm,0.2%FS

Test Loops Apply: Single Pump Open And Closed

Externally Controlled Oil: The Flow Rate Is 10L/min, And The Ratio Is Adjusted To 10MPa

Temperature Range: RT+25~-25°C, Temperature Control Accuracy ± 0.1°C

Cool-down Tim: The Cooling Time Is 1°C Per Minute On Average

Cooling Capacity: 45.9KW,39474 Kcal/h

Test Oil: N46

Warranty: 1 Year. 24hr Online Technical Guidanceyear. 24hr Online Technical Guidance

Noise: ≤85dB (measured 1 Meter Away From The Noise Source)

Highlight:

Comprehensive Hydraulic Valve Test Bench

110KW Hydraulic Valve Test Bench

Control Valve Test Bench 110KW

Basic Infomation

Place of Origin: China (Mainland)

Brand Name: DZ

Model Number: DZ-008

Payment & Shipping Terms

Packaging Details: wooden case

Delivery Time: 30-45 working days

Payment Terms: T/T

Supply Ability: 50 sets per month

Gallery

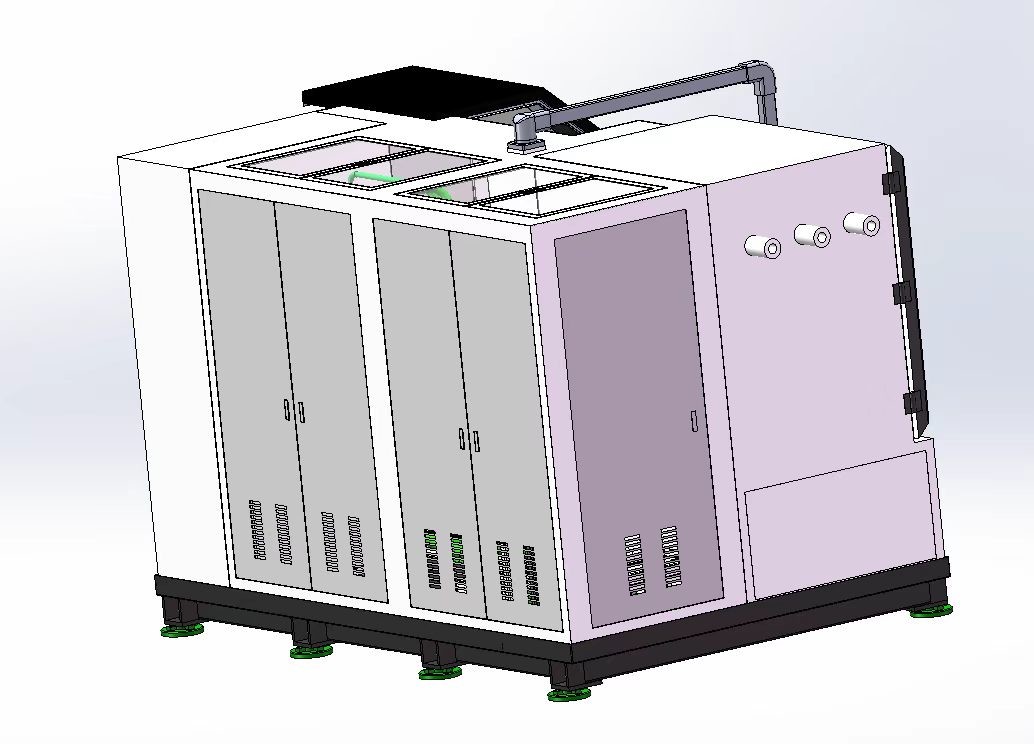

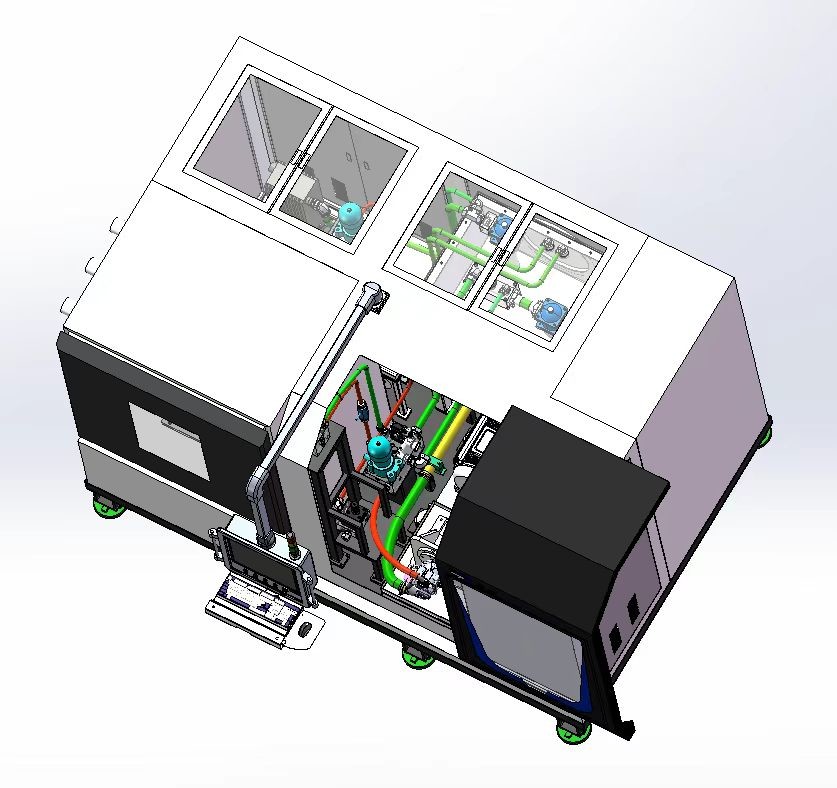

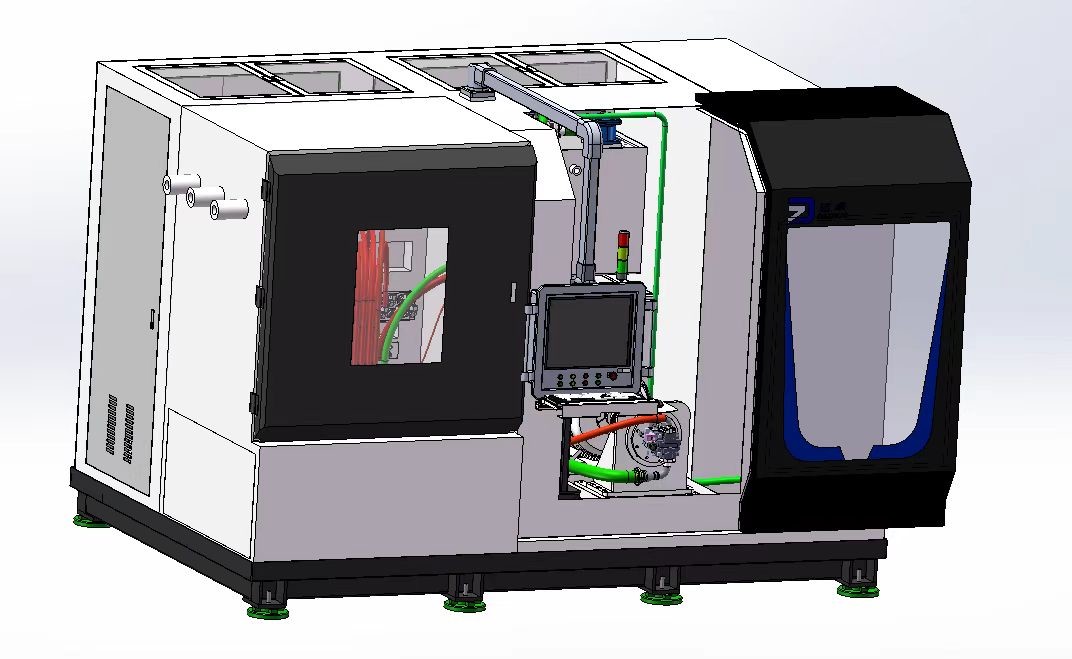

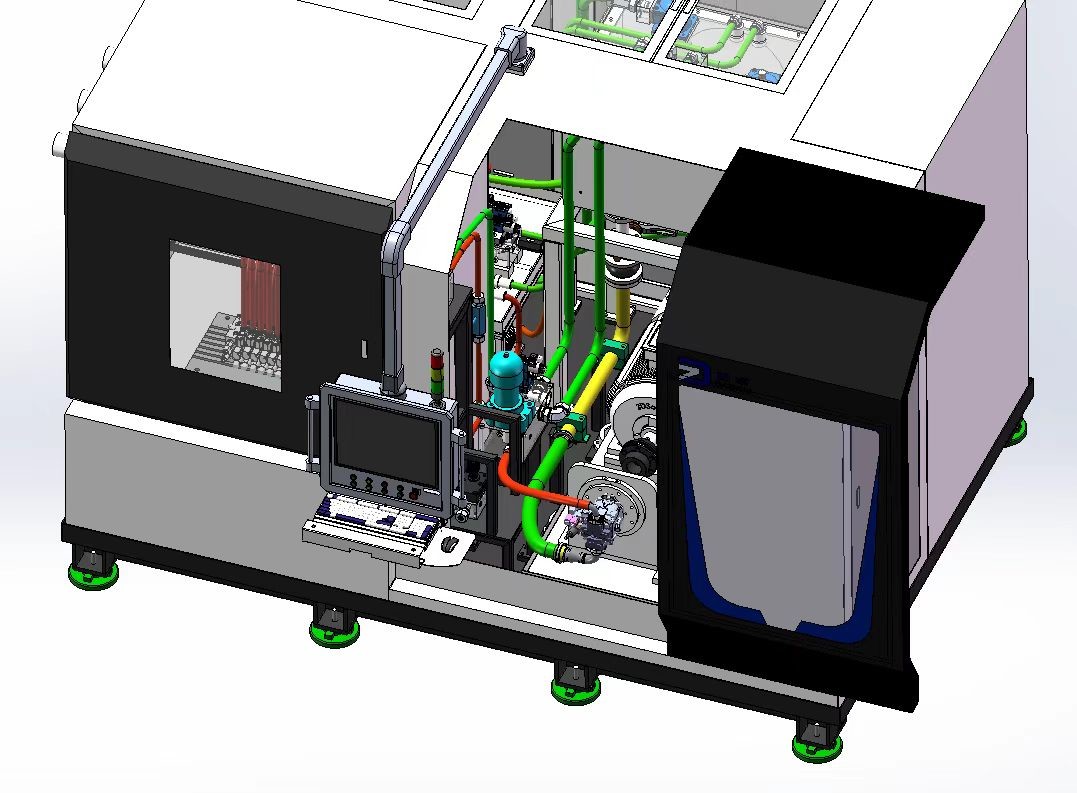

Comprehensive Hydraulic Valve Test Bench 110KW -25 Deg C Minimum Temperature

Product Description

Low-Temperature Performance Testing for Hydraulic Valves -25 deg C Minimum Temperature

Description

The hydraulic valve is mainly used for the low-temperature performance test of the control valve of the lifting platform, including the function of the slide valve, the performance of the relief valve, the pressure loss, the pressure resistance and other tests. The hydraulic pump is mainly used for the low-temperature performance test of the constant power piston pump, including no-load displacement, volumetric efficiency, constant power variable characteristics and other items.

Features

1. PLC control, proportional voltage regulation, computer-aided test system, automatic program testing, automatic data analysis and processing functions, and test reports can be issued after the test is completed;
2. The medium temperature and ambient temperature can be controlled respectively, and the minimum temperature is -25°C;
3. Two test stations, namely pump test station and valve test station, in which the valve test oil source is provided by the pump test station;

Valvel Test Techincal Parameter

Main motor power	110KW four-pole inverter motor, speed range 150~3000rpm	Siemens/ABB
Voltage regulation range	Electrically proportional voltage regulation, the maximum pressure is 42MPa	Rexroth
Flow range	VC5K3 1~250L/min, accuracy 0.3%RS	KRACHT
Return flow	QT500 2~75 L/min, accuracy 0.5%RS	HYDROTECHNIK
Torque range	±1000Nm,0.2%FS	Zhinghang kedian
Pressure sensors	0～60MPa,0.25%FS
Test loops apply	Single pump open and closed
Externally controlled oil	The flow rate is 10L/min, and the ratio is adjusted to 10MPa	ATOS

Pump Test Technical Parameter

Flow range	0～130L/min	The pump station supplies oil
Voltage regulation range	Electrically proportional voltage regulation, up to 40MPa	Bridge loading, Rexroth
P,AS,BS flow rate	VC3K3 0.6~160L/min, accuracy 0.3%RS	KRACHT
Pressure sensors	0～60MPa,0.25%FS
24V/12V switching signal	10 pcs
Constant temperature test room
Thermostatic operating room size	W(2000)mm × H(1500)mm × D(1000)mm	Two workstations operating space
Temperature range	RT+25~-25°C, temperature control accuracy ± 0.1°C
Cool-down time	The cooling time is 1°C per minute on average

Hydraulic oil cooling unit

Cooling capacity	45.9KW,39474 Kcal/h
Compressor units	Germany GEA (6HP) + Japan Panasonic (3HP)
condenser	The heat exchange is 30KW	Water cooling (provided by user)
evaporator	The heat exchange is 46KW, and the flow rate is 20m3/h	Placed inside the fuel tank
OTHERS
Fuel tank volume	1000L, effective volume 600L	The tank has a built-in cooling evaporator
Test oil	N46
Noise	≤85dB (measured 1 meter away from the noise source)

Reference schematic diagram of the pump test on the test bench (subject to final determination)

Comprehensive Hydraulic Valve Test Bench 110KW -25 Deg C Minimum Temperature 0

If you need to know more about the specific solution, or have any technical questions you would like to discuss with us, please feel free to contact us.
