High Performance Hydraulic Cylinder Test Bench 8L/min 7.5KW For Assembly

1 Set
MOQ
Negotiation
Price
High Performance Hydraulic Cylinder Test Bench 8L/min 7.5KW For Assembly
Features Gallery Product Description Request A Quote
Features
Specifications
Cavity Pressure: 1.5~42MPa
Test Oil Temperature: Room Temperature -115°C;
Oil Temperature Control Accuracy: ±5°C
Reciprocating Stroke:: Up To 400m (stroke Adjustable);
Reciprocating Speed:: 0.05-0.4m/s;
Drive Cylinder Speed Accuracy: ≦±10%
Friction Measurement Accuracy: ≦±1%;
Pressure Measurement Accuracy: ≦±0.25%;
Temperature Measurement Accuracy:: ≦±0.25 °C;
Oil Filtration Accuracy:: 10 μm
Reciprocating Stroke Accuracy:: ≦± 30mm/400mm
Pressure Establishment Time Of 0~35MPa: ≦3 S
Warranty: 1 Year. 24hr Online Technical Guidanceyear. 24hr Online Technical Guidance
Operating Noise: Not Higher Than 95 Decibels.
Servo Motor Power: ≥15kW;
Speed: 0.05-0.4m/s;
Motor Power:: 7.5KW;
Flow Rate:: 8L/min;
Maximum Working Pressure: 42MPa;
Highlight:

Hydraulic Cylinder Test Bench 8L/min

,

Hydraulic Cylinder Test Bench 7.5KW

,

Hydraulic Cylinder Test Stand 7.5KW
Basic Infomation
Place of Origin: China (Mainland)
Brand Name: DZ
Model Number: DZ-30KWMFCST-ZD
Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: 30-45 working days
Payment Terms: T/T
Supply Ability: 50 sets per month
Product Description





Function

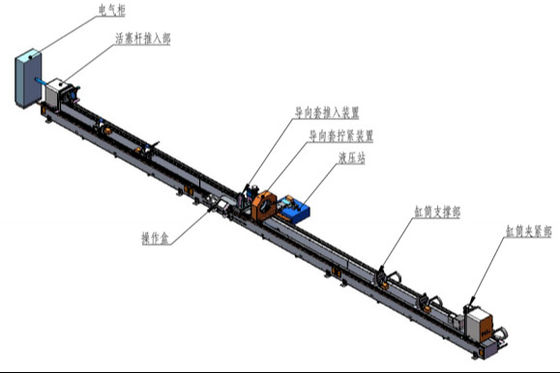

The 4-meter cylinder loading machine is a kind of semi-automatic production of hydraulic cylinder assembly machine that can realize the disassembly and assembly of hydraulic cylinders, which is mainly composed of cylinder loading machine and electrical control components. The cylinder loader is mainly composed of a device for the assembly of cylinder barrel, piston rod and guide sleeve and the tightening and loosening of the wire ring. It is mainly composed of a bed, a cylinder clamping device, a cylinder barrel support device, a tightening device (wire ring, piston), a piston rod support device, and a piston rod pushing device.





Applicable cylinder specifications:
The outer diameter of the cylinder barrel is 70-250mm, the length is 800-4000mm

the weight of the cylinder barrel ≤ 1000Kg;
Piston rod diameter 30-160mm;

The length is 800-4000mm,

the piston rod weight ≤ 1000Kg;
Hydraulic cylinder installation distance≤ 4200mm;
The total length of the hydraulic cylinder≤ 4300mm;
Total weight of hydraulic cylinder≤ 2000Kg;





Technical Parameter



Tightening torque of wire ring and guide sleeve 500-3000N.m
Torque accuracy ±10%;
Production cycle 5-10 minutes/piece;
Piston rod insertion thrust 2000kg.f.
Ambient temperature -7～50℃
Relative humidity 90% non-condensing;
Input voltage 3 phase AC 380±10%V, 50HZ;
Air pressure 0.4～0.7Mpa
Dimension

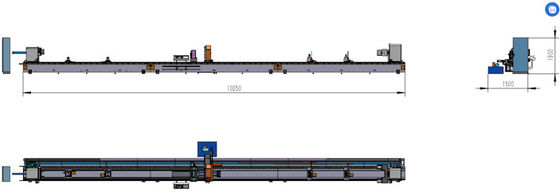

length 105000mm X width 1500mm X height 1900mm


Rotation speed 0~20rpm (servo controlled)
Clamping range 0~400mm
Maximum topping force 3000KG.f
Transfer speed 3-9m/min, frequency conversion motor speed regulation
Number of cylinder barrel support blocks 2 pcs
Ascent/descent range 200mm
Push in the maximum stroke 3500mm
Piston jacking force 2000KG.F
Piston jacking stroke 1000mm
Ascending and descending strokes 220mm (maximum)
Move the distance left and right 15mm
Rotation speed 0-15 rpm;
Left and right sliding cylinder driven, stroke 700mm;
Forward and backward stroke 1000mm
Torsion accuracy 0-10%;
TORQUE RANGE Up to 3000N.M;
